Brand Name : CARE4U
Model Number : ZLK-IRT101
Certification : CE/FDA/RoHS
Place of Origin : CHINA
MOQ : 50PCS
Price : $6.5-8 / PCS
Payment Terms : T/T
Supply Ability : 100,000 pcs per day
Delivery Time : 1-2 days
Packaging Details : Color box package
Application : Forehead
Size : 116x55x170mm
Weight : 150g ( not including batteries )
Color : Green and white
IP rating : IP20
Material : Acrylic, Plastic
Power Supply : 2*1.5V AAA Batteries
C/F degree convert : Yes
Measuring distance : 1-10cm
Display : LED backlight, three colors readout
Accuray : 0.1C/0.1F degree
Memory : 32 sets records
Resolution ratio : 0.1℃/℉
Safety standard : GB 9706.1
Mode : Object and Body
Lifetime : 3 years
After-sale serviSpare parts or Replacementsce : Online technical support
Baby Infrared Digital Body Non-contact Infrared Thermometer Gun
1. Description
ZLK-IRT101 non-contact Infrared baby forehead thermometers are used to measure body temperature through infrared rays. They are divided into two types: contact and non-contact. Non-contact Infrared baby forehead thermometers are relatively safe and accurate for temperature measurement, suitable for elderly, children, hospitals and families.
A medical infrared baby forehead thermometer, which does not contain harmful substances, such as mercury. Physiological effect has no adverse reactions, such as, toxicity, irritation, sensitization, etc. Celsius/Fahrenheit will appears during measuring unit. It is three color LED display, has automatic shutdown after measuring. The operating mode is continuous operation, memory data is up to 32 groups. The power management is designed to intelligent shutdown, ultra-low power consumption, power display and low-battery prompt.
2. Specification
Model | ZLK-IRT101 |
Display resolution | 32.2℉/ 0.1℃ |
Body temperature mode | ±32.36℉ / ±0.2℃ |
Measuring range | ( 89.6℉ ~ 107.6℉ ) /( 32℃~42℃ ), body mode; ( 32℉ ~ 212℉ ) /( 0℃~100℃ ), object mode |
Measuring distance | 1-10cm |
Operating ambient temperature | ( 50℉ ~ 104℉ ) /( 10℃~40℃ ) |
Operating ambient humidity | ≤80%RH |
Storage temperature range Reading memory storage | ( -13℉ ~ 131℉ ) /( -25℃~55℃ ) 32 groups |
Power | DC3V |
Battery | 2X AAA alkaline dry battery |
IP rating | IP20 |
Dimension | 116x55x170mm (LxWxH) |
Weight | 150g ( without battery ) |
Validity | 3 years |
3. Multiple function
Non-contact: the digital thermometer medical measures within 1-10cm distance, refuses to contact. It is also made by healthy material, safer and healthier.
Quick measurement: quickly measure the temperature in 1 second, especially the forehead reading, even if it's the rest time, you will not disturb him.
Fever Indicating System: equipped with fever warning system, the thermometer for fever will indicate temperature status with corresponding lights and beeps.
Multipurpose: the non-contact forehead thermometer is also suitable for body, milk, bath water, barbecue, barbecue wine, food storage temperature.
4. User Instruction
Hold the NCIT sensing area perpendicular to the forehead and instruct the person to remain stationary during measurement.
The ideal measure distance between the NCIT and forehead is about 3~5cm.
Do not touch the sensing area of the NCIT and keep the sensor clean and dry.
5. Quality Control
Incoming quality inspection
Quality inspection of all assembly and procurement materials according to standards
Reliability test
a. Component stress test
b. Hardware reliability test
c. Automated software reliability test
d. Real environment simulation test
Process control: mutual check process in assembly line
a. Process quality management
b. Independent inspection by operators
c. Process inspection
d. Handling abnormal quality
e. Segmentation and identification of bad products, bad statistics
6. FQA
Can I get a thermometer non-contact sample?
Yes, we can provide the sample for you, you can contact our salesperson to get it.
Can you provide the OEM/ODM service?
Yes, we have rich experience in designing, development, producing, we can provide logo printing, box customized and also support ODM service.
What's your lead time for your thermometer gun?
Our current capacity per day is about 10, 000pcs, and about 60,0000 per month, so if qty is less than 1000pcs, can ship in the second day, more than 10000pcs, lead time is about 7 days.
What's the payment methods?
We can accept T/T, paypal, western union, trade assurance, etc.
What's MOQ for your thermometer infrared?
If it's our standard infrared thermometer, we can sell 1pcs, if it's customized forehead thermometer, our MOQ is 1000pcs.
![]() |

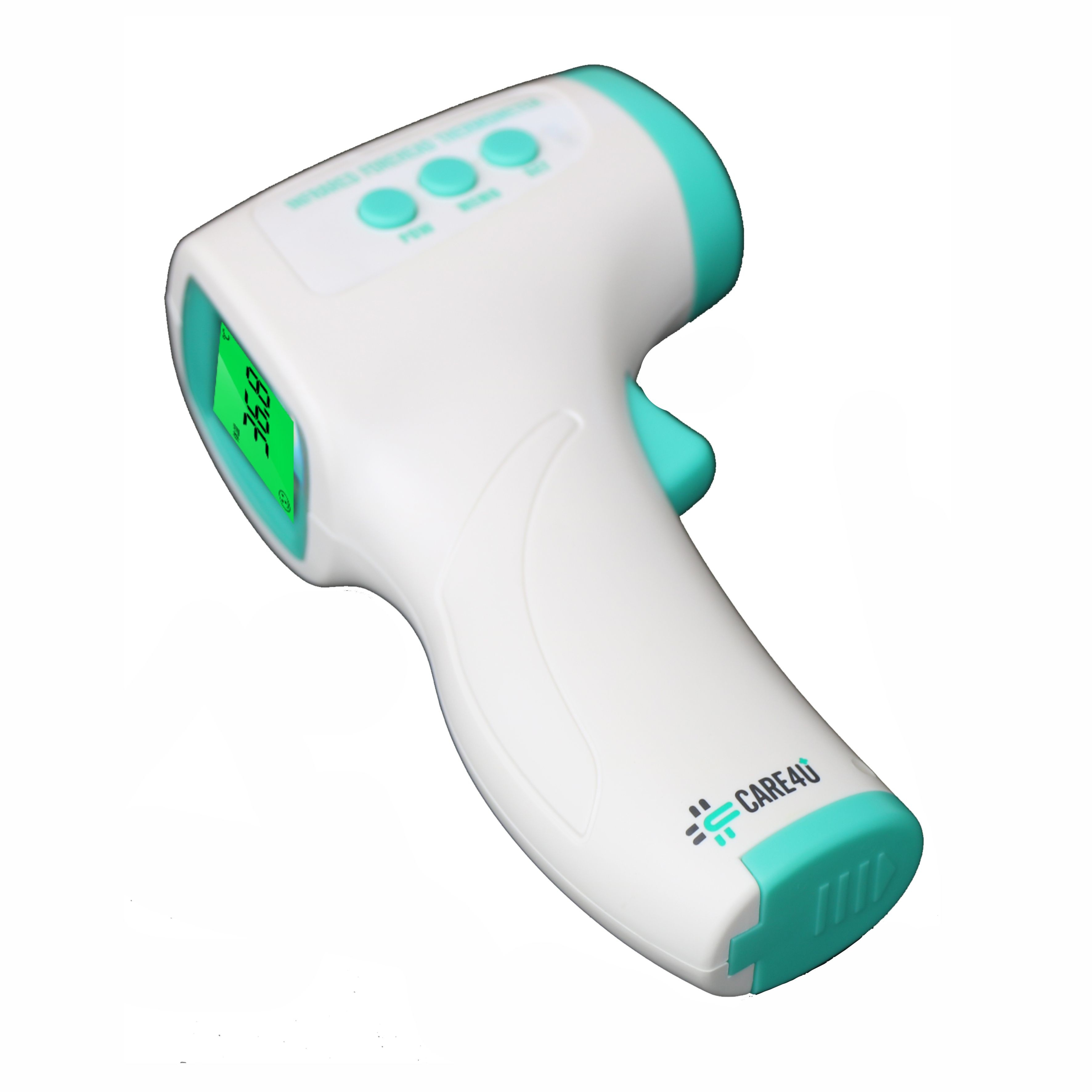

CARE4U IP20 DC3V Baby Forehead Thermometer Gun Images |
